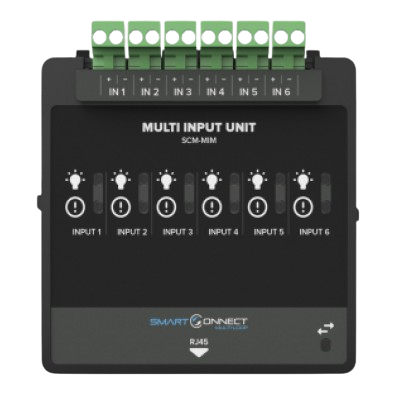

Zeta SCM-MIM Input Module - 6 Inputs

Zeta SCM-MIM Input Module - 6 Inputs

The SCM-MIM is a six input module that is designed to be DIN mounted inside of a Smart Connect Multiloop control panel. It’s powered and interfaced to the Smart Connect Multiloop via a RJ45 connection.

The module has six class B inputs that are commonly used to monitor and raise alarms form any ancillary equipment such as sprinkler flow switches, aspiration detectors, secondary fire control panels, beam detectors, and external power supplies etc.

The module monitors and transmits the status (normal, open, short, or alarm) of any inputs to a control panel. Each input can be programmed to either give a supervisory or alarm signal when active.

Key Features

• Designed to EN54 Part 2
• Each input is monitored for open & short circuits
• Extensive front unit status indications
• Quick and easy to install by plugging the RJ45 cable into the module and control panel (cable supplied with Unit)
• Each input can be configured as either Alarm or Supervisory
