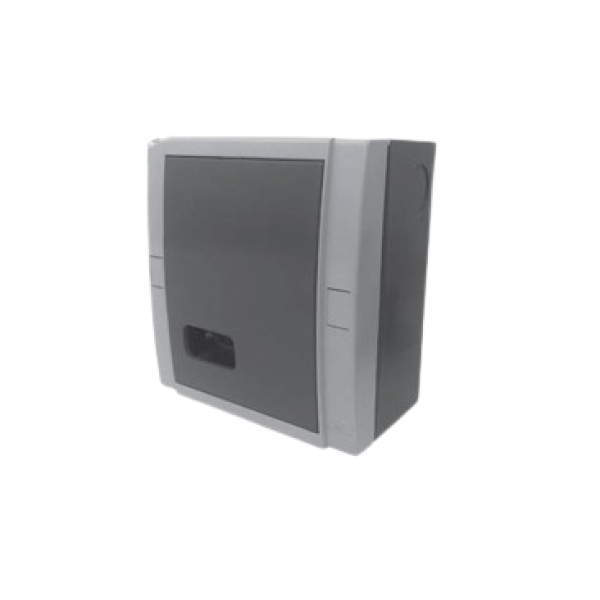

Vesda VRT-300 Remote Mount VESDAnet Socket

Vesda VRT-300 Remote Mount VESDAnet Socket

The VESDAnet socket is a 15-pin female connector which enables the VESDA hand-held LCD Programmer and HLI to be connected to a VESDAnet network for configuration, control and monitoring. A VESDAnet socket is also located on the termination card of VESDAnet capable detectors. On the other hand, the VESDAnet socket module includes a VESDAnet socket card which consists of a VESDAnet socket, VESDAnet and power terminals.

The VESDAnet socket module can be mounted onto a remote box or a 19” Subrack, enabling access to a VESDAnet network from a remote location.

Operation of VESDAnet Socket Module

The VESDAnet socket module requires an external 24VDC. The VESDAnet terminals on the VESDAnet socket card enable VESDAnet communication wires to be brought into the VESDAnet socket module and looped out to another device. Data communication on VESDAnet is bidirectional. The polarity of the data wires must be maintained throughout the VESDAnet network. It is recommended that RS 485 (Belden 9841 - 120 ohm) twisted pair cables be used.

Key Features:

• Communication with VESDAnet
• Designed for easy mounting
