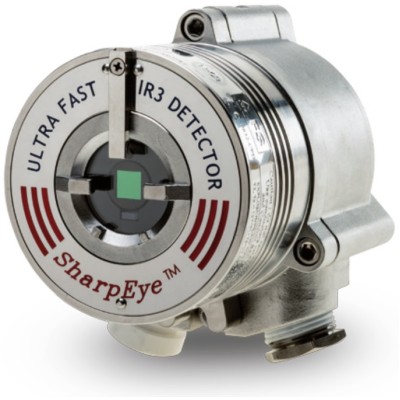

Spectrex SharpEye 40/40UFI Ultra Fast Triple IR (IR3) Flame Detector

Brand: Spectrex

Part Number: 40/40UFI
Categories: Detection (Conventional)

Please Contact Us for Price & Availability

Please note: This product is now obsolete, we recommend using the Spectrex 40/40C-M SharpEye 40/40 Flame Detector IR3 + Hydrogen (40/40C-M)

Spectrex SharpEye 40/40UFI Ultra Fast Triple IR (IR3) Flame Detector

The 40/40UFI, an Ultra-Fast multi-spectrum IR3 Flame Detector, detects hydrocarbon fuel and gas fires at long distances, and is especially designed to detect an explosive 1 ft (0.3m) diameter gas cloud explosion in max. 50m secs for 1ft diameter sphere methane-air mixture explosion at 66 ft (20m) with the highest immunity to false alarms. The 40/40UFI IR3 can also detect a 1 ft2 (0.1m2) gasoline/ n-Heptane pan fire at up to 300 ft (90m).

The 40/40UFI is part of the 40/40 Series, the most durable and weather resistant range of flame detectors currently on the market. Features include a heated window, to eliminate condensation and icing; HART capability for digital communications; lower power requirements; and a compact, lighter design. Due to increased reliability, the 40/40 Series warranty period has been extended to 5 years and is SIL2 (TUV) approved per IEC 61508.

Key Features

Multi Spectrum Design - for long distance detection and high false alarm immunity
High Speed Response – 50m sec
Sensitivity Selection - to ensure no zone crossover detection
Automatic Built-In-Test (BIT) - to assure continued reliable operation
Heated window - for operation in harsh weather conditions (snow, ice, condensation)
Multiple output options for maximum flexibility and compatibility: Relays (3) for Alarm, Fault and Auxiliary - Analogue output for fast detection - 0-20mA (stepped) - HART Protocol for maintenance and asset management - RS-485, Modbus Compatible
High Reliability - MTBF - minimum 150,000 hours
Safety Integrity Level SIL2 (TUV)
5-Year Warranty
User Programmable via HART or RS-485
Hazardous area zones: Zones 1 & 2 with IIC gas group vapors present - Zones 21 & 22 with IIIC dust type present
Ex approved to: ATEX & IECEx - FM/FMC/CSA - TR CU (EAC)
3rd party Performance: EN54-10 (VdS) - FM3260 (FM)
