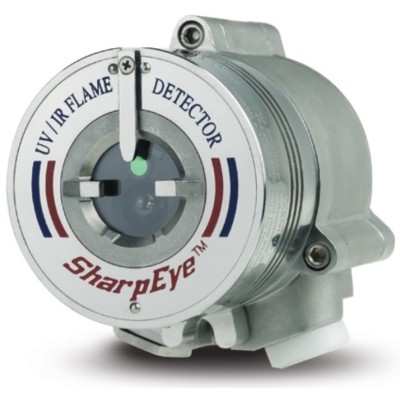

Spectrex SharpEye 40/40LB UV / IR Flame Detector with Test Option

Part Number: 40/40LB
Categories: Detection (Conventional)

Please Contact Us for Price & Availability

Please note: This product is now obsolete, we recommend using the Spectrex 40/40C-LB SharpEye 40/40 Flame Detector UV/IR (40/40C-LB)

Spectrex SharpEye 40/40LB UV / IR Flame Detector with Test Option

The 40/40L (40/40LB with built-in test option) Flame Detectors provides a combination of UV and IR sensors, where the IR sensor operates at a wavelength of 2.5-3.0 micron and can detect hydrocarbon-based fuel and gas fires, hydroxyl and hydrogen fires, as well as metal and inorganic fires. The UV/IR flame detector senses radiant energy in the short-wave section of both the ultraviolet and infrared portions of the electromagnetic spectrum.

The signals from both sensors are analysed for frequency, intensity, and duration. Simultaneous detection of radiant energy in both the UV and IR sensors triggers an alarm signal. The UV sensor incorporates a special logic circuit that helps prevent false alarms caused by solar radiation. Due to increased reliability, the 40/40 Series warranty period has been extended to 5 years and is SIL2 (TUV) approved to IEC 61508.

Key Features

UV/IR Dual-Sensor
High-Speed Response - 150m sec Response to Saturated Signal
Solar blind
4040LB with Automatic Built-In-Test (BIT) and Manual - to assure continued reliable operation
Heated window - for operation in harsh weather conditions (snow, ice, condensation)
Multiple output options for maximum flexibility and compatibility: Relays (3) for Alarm, Fault and Auxiliary - 0-20mA (stepped) - HART Protocol for maintenance and asset management - RS-485, Modbus Compatible
High Reliability - MTBF - minimum 150,000 hours
Approved to Safety Integrity Level 2 (SIL2 – TUV) - Models 40/40LB and 40/40L4B only
5-Year Warranty
User Programmable via HART or RS-485
Ex approved for Zone 1 hazardous area location: ATEX – IECEx – FM/FMC – CSA
3rd party Performance Tested: EN54-10 (LPCB) - FM3260 (FM)
