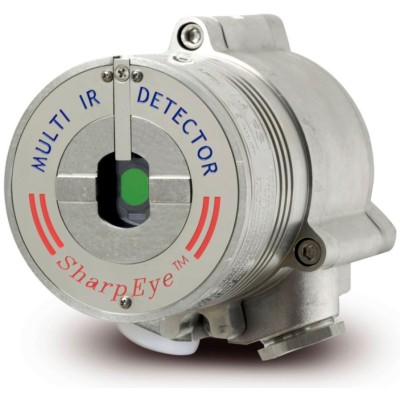

Spectrex SharpEye 40/40M Multi-IR Hydrogen Flame Detector

Part Number: 40/40M
Categories: Detection (Conventional)

Please Contact Us for Price & Availability

Please note: This product is now obsolete, we recommend using the Spectrex 40/40C-M SharpEye 40/40 Flame Detector IR3 + Hydrogen (40/40C-M)

Spectrex SharpEye 40/40M Multi-IR Hydrogen Flame Detector

The 40/40M Multi IR Flame Detector is specifically designed for detection of hydrocarbon and hydrogen flames. It detects hydrocarbon-based fuel and gas fires at long distances with the highest immunity to false alarms. The 40/40M can detect a gasoline pan fire at 215 ft (65m) or a hydrogen flame at 125 ft (38m) in less than 5 seconds.

The 40/40M is the most durable and weather resistant flame detector currently on the market. Its new features include a heated window, to eliminate condensation and icing; HART capabilities, for digital communications; lower power requirements, and a compact, lighter design. Due to increased reliability, the 40/40 Series warranty period has been extended to 5 years and is SIL2 (TUV) approved to IEC 61508.

Key Features:

Multi spectrum design - for long distance detection of hydrocarbons and hydrogen flames
High false alarm immunity
Sensitivity selection - to ensure no zone crossover detection
Automatic and Manual Built-In-Test (BIT) - to assure continued reliable operation
Heated window - for operation in harsh weather conditions (snow, ice, condensation)
Multiple output options for maximum flexibility and compatibility: Relays (3) for Alarm, Fault and Auxiliary - 0-20mA (stepped) - HART Protocol for maintenance and asset management - RS-485, Modbus Compatible
High Reliability - MTBF - minimum 150,000 hours
Approved to Safety Integrity Level 2 (SIL2 – TUV)
5-Year Warranty
User Programmable via HART or RS-485
Hazardous area zones: Zones 1 & 2 with IIC gas group vapours present - Zones 21 & 22 with IIIC dust type present
Ex approved to: ATEX & IECEx - FM/FMC/CSA - TR CU (EAC)
3rd party performance tested: EN54-10 (VdS) - FM3260
