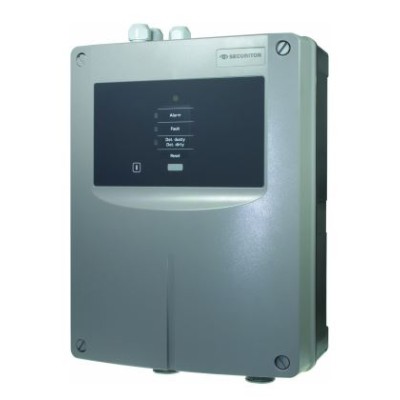

Patol ASD533-1 Single Sensor Standard Display (11-2000001-01-01P)

Patol ASD533-1 Single Sensor Standard Display (11-2000001-01-01P)

The ASD 533 (Aspirating Smoke Detector) is the new generation of a highly sensitive, active smoke detection system. It is based on the successful ASD 535 and is particularly well suited for monitoring smaller areas and sampling distances where a reduced sampling pipe network is sufficient.

The ASD 533 consists of a fan, a highly sensitive smoke sensor, an airflow measurement system, and evaluation electronics. The fan draws in air through sampling holes from the room or facility being monitored and then through a sampling pipe to the evaluating processor unit.

Here the air samples are continually monitored for smoke particles by the smoke sensor. Airflow monitoring ensures that the sampling pipe is constantly checked for pipe breakage and any obstruction of the sampling holes.

The display and control panel of the evaluating processor unit indicates alarm, fault and status reports. Any increase in smoke concentration levels is detected very early. Three pre-alarm and two main alarms can be programmed and forwarded to a fire alarm control panel via volt free relays contacts.

The ASD 533 is used whenever conventional point-type smoke detectors cannot be used. This may be due for example to ambient conditions (too hot, too cold, too dirty) or because operating conditions are such that access is highly restricted (prisons, false ceilings, clean rooms, laboratories, high-rack storage facilities, etc) or because lightning-fast detection is required, e.g. in data centres.

Key Features:

• Latest generation of aspirating smoke detectors for simple applications
• 1 sampling pipe/1 detector
• EN 54-20 classes A, B, and C
• 5 alarm levels (3 pre-alarms and 2 alarms)
• Response sensitivity settable from 0.002–10%/m
• Insensitive to dirt particles thanks to particle suppression
• Auto-learning function
• Low noise level, compliant with ISO 11690-1
• Perfected smoke detection thanks to HD sensor (high-dynamic technology)
• Low power consumption
• ASD Config PC tool
• ASD PipeFlow calculation tool
