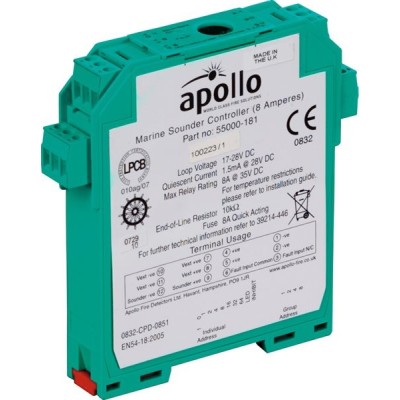

Apollo 55000-181MAR Marine DIN-Rail Sounder Controller (8 Amperes)
- Part Number: 55000-181MAR
- Categories: Ancillary (Addressable)
Please note: This product is currently on an extended leadtime, the manufacturer recommends the 55000-182APO as the closest alternative.
Apollo 55000-181MAR Marine DIN-Rail Sounder Controller (8 Amperes)
The Marine DIN-Rail Sounder Controller (8 Amperes) is used to control the operation of a zone of externally powered sounders and report their status to the fire control panel.
The device is loop powered and controlled by the fire control panel using the output bits in the communication protocol. The unit is polarity sensitive. This unit needs to be installed in a suitable enclosure (Part No. 29600-239/240) or equivalent and secured using the end stops.
Key Features:
- Enables sounders to be operated continuously or to be pulsed, one second on, one second off
- May be synchronised when in pulsed operation
- External supply monitoring
- Will accept a load of 8 Amperes
Apollo 55000-181APO - Installation Manual (593.02KB)
Apollo Marine - Brochure (1.08MB)
