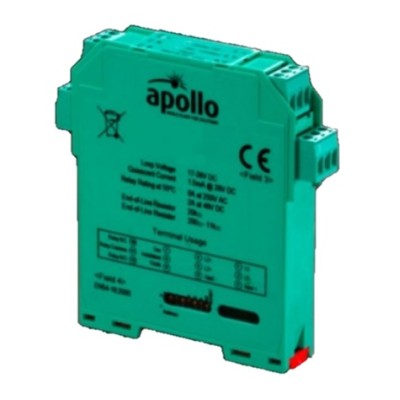

Apollo 55000-771MAR Marine DIN-Rail Output Unit

Please Note: This product is now obsolete, please see available Marine Modules.

Apollo 55000-771MAR Marine DIN-Rail Output Unit

The Marine DIN-Rail Mounted Output Unit, part no. 55000-771MAR, is designed to be mounted inside an enclosure, clipped onto a standard 35mm DIN rail (DIN 46277) or mounted directly to the enclosure using two 4mm screws.

The address of the unit is set on segments 1–7 of the DIL switch. Segment 8 is used to disable the indicating LED if it is not required or the extra loop current to illuminate it is not available. The unit is loop powered and controlled by the control panel using the output bits in the communication protocol.

Key Features:

• Capable of switching up to 30V at 1A
• Fits onto a standard 35mm DIN-Rail
