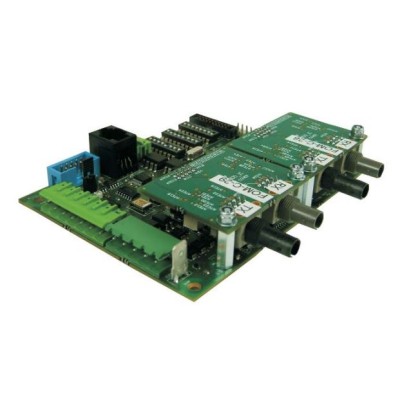

Fireclass 557.200.039FC TLI800ENG with PSU

Fireclass 557.200.039FC TLI800ENG with PSU

The use of the FireClass Network allows the fragmentation of a number of fire controllers to be drawn into a network system.

The Fireclass Net communications network comprises a collection of network interface modules and peripheral equipment that together form a fault resistant and flexible peer-to-peer network for the Fireclass Digital addressable fire systems controllers.

One TLI800ENG is required per FireClass and is installed onto the FireClass Main Processor board. It is provided boxed complete with PSU.

The TLI800ENG is used to:

• Connect up to 24 Fireclass panels or other nodes to a single network
• Connect the Emergency display used to display an alarm in case of a System fault

Supported network communications media:

• Shielded twisted pair copper cable (RS485 standard)
• Fibre optic cable (multimode 50/125m or 62.5/125m)

Key Features

• All field wiring terminations connect via removable terminal blocks
• Two RS-485 connections for twisted pair network communications
• Earth fault detection and isolation
• Onboard diagnostic LEDs. These indicate network communications activity and TLI800EN module faults
• Two Micro Controller Units. One is used as a backup microprocessor. These provide MCU fault detection and Emergency Mode fire alarm monitoring in the case of MCU failure
• Fire Alarm input, Fire Alarm output, and RS-485 Emergency Display connections for use in Emergency Mode
