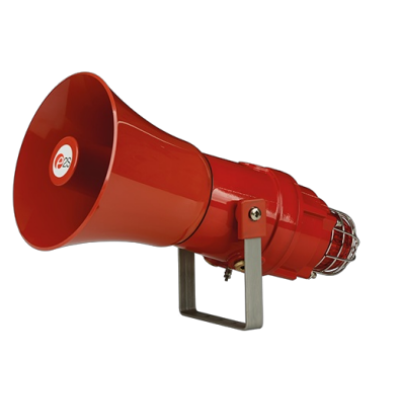

E2S D1xC2X10F Flare Alarm Horn & 10 Joule Xenon

E2S D1xC2X10F Flare Alarm Horn & 10 Joule Xenon

The D1xC2X10F is a globally certified alarm horn sounder featuring a reentrant flare horn and combined with a 10 Joule Xenon strobe beacon. Robust Type 4/4X, IP66 marine grade, corrosion proof aluminium enclosure approved for Class I Div 1, Zone 1, IECEx and ATEx Zone 1, 2, 21 & 22 explosion proof signalling applications.

Featuring 64 alarm tones, each of the 4 stage/channels can be remotely activated. Class D amplification provides a high sound output with a choice of two power modes. The threaded flameproof joint, multiple cable entries and duplicated, pluggable termination simplifies both installation and routine maintenance. The 24Vdc version is approved for public (alarm horn) and private mode fire alarm use. SIL1 & SIL2 compliant to IEC61508 (2010) as standard.

Key Features

• Maximum sound pressure level output of 123dB(A)
• Choice of 64 alarm tone frequencies
• 4 remotely selectable alarm stages/channels
• Positive or negative line stage/channel switching
• Automatic synchronisation on multi-beacon & sounder systems
• User selectable strobe flash rates
• Field replaceable lens colour filter
• Ratchet adjustable 316 stainless steel bracket
• Available with custom tone configurations and frequencies
• Robust corrosion proof aluminium enclosure
• Duplicate cable terminations
• UL464 / CAN/ULC-S525 & UL1638 / CAN/ULC-S526

Approvals

• UL/cUL/ULC File ref: E230764
• IECEx Certificate: IECEx ULD 19.0008X
• ATEX Certificate: DEMKO 19 ATEX 2141X
• CSFM listing: 7136-2279:0506
• UKCA certificate: UL21UKEX2132X
• INMETRO IEx 24.0158X

Coding

• NEC Class / Zone
• Class I Zone 1 IIC T3C Gb Ta -55°C to +85°C
• Class I Zone 1 IIC T4 Gb Ta -55°C to +70°C (T4A: +55°C)
• CEC Class / Zone
• Class I Zone 1 IIC T4A Gb Ta -55°C to +55°C
• NEC Class / Div
• Class I Div 1 ABCD T3C Ta -55°C to +85°C
• Class I Div 1 ABCD T4 Ta -55°C to +70°C (T4A: +55°C)
• CEC Class / Div
• Class I Div 1 ABCD T4A Ta -55°C to +55°C
• IECEx / ATEX
• II 2G Ex db IIC T3 Gb Ta -55°C to +75°C
• II 2G Ex db IIC T4 Gb Ta -55°C to +65°C
• II 2D Ex tb IIIC T137°C Db Ta 55°C to +75°C
