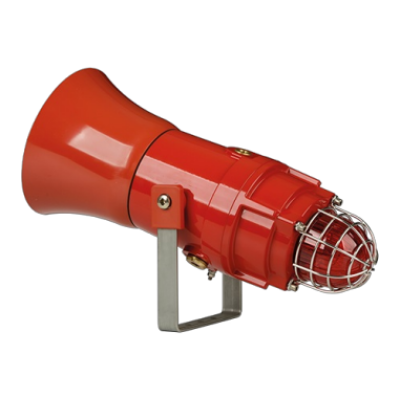

E2S D1xC1X05F Flare Alarm Horn & 5 Joule Strobe

E2S D1xC1X05F Flare Alarm Horn & 5 Joule Strobe

The D1xC1X05F is a globally certified alarm horn sounder featuring a reentrant flare horn and combined with a 5 Joule Xenon strobe beacon. Robust Type 4/4X, IP66 marine grade, corrosion proof aluminium enclosure approved for Class I & II Div 1, Zone 1 & 20, IECEx and ATEX Zone 1, 2, 21 & 22 explosion proof signalling applications.

Featuring 64 alarm tone sounds, each of the available 4 stage/channels can be remotely triggered. Class D amplification provides a high sound output at optimum operating current. The threaded flameproof joint, multiple cable entries and duplicated, pluggable termination simplifies both installation and routine maintenance. The 24Vdc Class I version is approved for public (alarm horn) and private mode fire alarm use. SIL1 & SIL2 compliant to IEC61508 (2010) as standard.

Key Features

• Maximum sound pressure level output of 115dB(A)
• Automatic synchronisation on multi-beacon & sounder systems
• UL464 / CAN/ULC-S525 & UL1638 / CAN/ULC-S526

Approvals

• UL/cUL/ULC File ref: E230764
• IECEx Certificate: IECEx ULD 19.0008X
• ATEX Certificate: DEMKO 19 ATEX 2141X
• CSFM listing: 7136-2279:0506
• UKCA certificate: UL21UKEX2132X
• INMETRO IEx 24.0158X

Coding

• NEC Class / Zone
• Class I Zone 1 IIC T4 Gb Ta -55°C to +85°C
• Class I Zone 1 IIC T4A Gb Ta -55°C to +80°C
• Class I Zone 1 IIC T5 Gb Ta -55°C to +60°C (T6: +45°C)
• CEC Class / Zone
• Class I Zone 1 IIC T5 Gb Ta -55°C to +55°C (T6: +45°C)
• NEC Class / Div
• Class I Div 1 ABCD T4 Ta -55°C to +85°C
• Class I Div 1 ABCD T4A Ta -55°C to +80°C
• Class I Div 1 ABCD T5 Ta -55°C to +60°C (T6: +45°C)
• CEC Class / Div
• Class I Div 1 ABCD T5 Ta -55°C to +55°C (T6: +45°C)
• IECEx / ATEX
• II 2G Ex db IIC T4/T5 Gb Ta -55°C to +75°C
• II 2G Ex db IIC T5 Gb Ta -55°C to +55°C
• II 2G Ex db IIC T6 Gb Ta -55°C to +40°C (DC only)
• II 2D Ex tb IIIC T115°C Db Ta 55°C to +75°C
• NEC Class / Zone – Product version: D

Class II Zone 20 IIIB T4A Gb Ta -55°C to +70°C

NEC Class / Div – Product version: D

Class II Div 1 Group FG T4A Ta -55°C to +70°C
