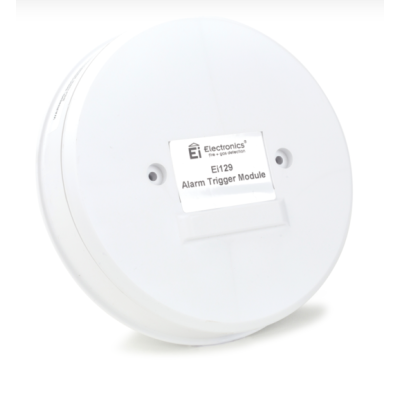

Aico Switched Input Module – Ei129

Aico Switched Input Module – Ei129

The Ei129 is a mains powered Switched Input Module with rechargeable lithium cell back up. It will triggers the alarms in a system if an external device is activated, such as a sprinkler system.

The Ei129 comes with a cover or can be mounted underneath an alarm.

Operation of the Ei129

When the volt-free contacts connected to the Switched Input Module are closed, all interconnected smoke, heat and CO alarms will sound.

When the device triggering the Switched Input Module resets (i.e. when the contacts switch back) it will automatically reset and all interconnected alarms will cease sounding.

Key Features

• This module triggers the alarms in a system if an external device is activated, such as a sprinkler system.
• Mains powered with a rechargeable lithium cell back up
• Connects with the alarm system through a hard wire interconnect
• Compatible with the 3000, Ei2110e Multi-Sensor Fire Alarm, 160e Seies alarms and the 140RC Series
