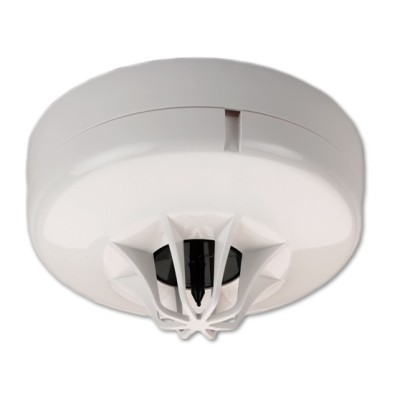

Ziton Z620-582-3P Conventional Rate of Rise Heat Detector (Polar White)

Please note: This product is now obsolete. The recommended replacement is the Ziton DC-9103E Conventional Optical Detector (Rate of Rise) or the Kidde NC-DPH-W Conventional Point Detector - Category A/B Heat (White).

We have limited stock available of this product, please contact us for further information.

Ziton Z620-582-3P Conventional Rate of Rise Heat Detector (Polar White)

The Z620-582-3P is a Polar White conventional thermal fire detector. It activates into alarm at a fixed temperature of 58°C with an incorporated rate-of-rise algorithm.

Advanced thermistor design

Based on advanced thermistor technology, the Z620 series heat detectors provide a reliable response to fires in areas where environmental conditions prohibit the use of smoke detection.

The Z620-582-3P operates on the rate-of-rise of its ambient temperature. To increase response time without compromising reliability, a rate compensation element enables the detector to become more sensitive to higher rates of temperature rise.

Approvals and Use

The Z620-582-3P meets the requirements of EN54 Part 5 with sensitivity to grade 1.

Low profile moulding and options of either surface or recessed bases make the units ideal for both modern commercial and industrial interiors featuring solid or suspended ceilings. A high intensity, red LED indicator on the detector moulding provides clear indication when the unit is in alarm.

Twist and lock base

For ease of removal, Z620 series detectors plug into a range of base units. In order to prevent unauthorised removal, a site selectable option is provided to lock the detector into its base. Once applied the unit can only be removed by means of a special tool.

All Z620 detectors feature head out monitoring support. Should a detector be removed from its base, in addition to giving a fault signal, all devices down line of the removed unit continue to function normally when the detectors are used with a Z6-BS5-P diode base.

Key Features:

• Approved to EN54 Parts 5 and CPD Certified
• Low profile conventional design
• Head out continuity support
• Range of surface bases
• Plug in base with automatic locking
