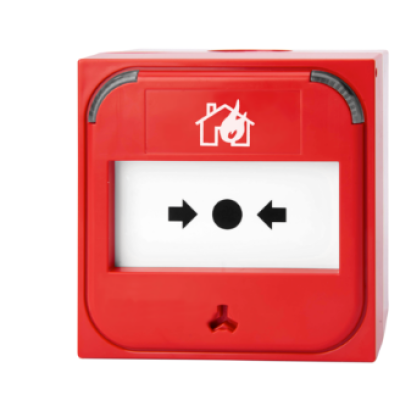

Ziton ZP886R-RMKIT ZP7 Series Intelligent Addressable Manual Call Point - Recess Mount

Ziton ZP886R-RMKIT ZP7 Series Intelligent Addressable Manual Call Point - Recess Mount

The ZP880 Series is an intelligent range of addressable manual call points. The ZP886R-RMKIT is a red, single action indoor MCP. It is delivered complete with resettable element, test connector and test key, as well as a surface mount adapter for 3rd party back boxes. Multiple optional accessories are available to facilitate most indoor installation requirements.

Aesthetics

This single action MCP is a standard profile, indoor MCP suitable for surface and recess mount installations using standard or legacy European electrical boxes. With its designer dual, tricolour LEDs it offers 180°, clear local indication of its operational status, even from a side view in a passage installation. The clean face of the MCP is further enhanced by a front access & test key facility.

Installation & maintenance friendly

The front facing access for an aesthetically matching test key allows unhindered access regardless of the installation location. The MCP key doubles as a test and disassembly tool allowing removal of the MCP front cover without the need for additional tools.

Compatibility

The ZP880 range may be used on compatible Ziton fire systems. They can be deployed seamlessly into existing legacy systems without CIE configuration changes.

Key Features:

• Reliable single action manual call point for mounting on 3rd party wall boxes
• Dual, tri-colour status indicators offers 180° alarm visibility
• Tamper resistant design with resettable or optional frangible element
• Unobtrusive front facing test facility
• Standard mounting options facilitates easy retrofitting to existing installations
• Pluggable connector with link through facility for ease of installation and pre-commissioning testing
• An alarm flag on the face of the manual call point allows alarm indication even without alarm LEDs
• Fast, no-tools-required maintenance using the test key
• Up to 127 devices per loop
