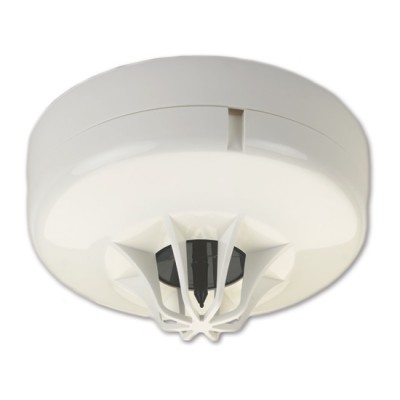

Ziton Z620-771-3 Heat Sensor 82oC (Ivory) 133601

 Please note: The Z620-771-3 is now obsolete, the recommended replacement is the Kidde NC-DPH-W Conventional Point Detector - Category A/B Heat (White).

Ziton Z620-771-3 Heat Sensor 82oC (Ivory) 133601

The Z620-771-3P is a Polar White conventional thermal fire detector. It activates into alarm at a fixed temperature of 77°C.

Advanced thermistor design

Based on advanced thermistor technology, the Z620 series heat detectors provides a reliable response to fires in areas where environmental conditions prohibit the use of smoke detection.

The Z620-771-3P is a high temperature detector suitable for use where ambient temperatures may consistently be greater than normal, for example boiler rooms and certain food processing installations. The detector is set to operate at 77ºC.

Approvals and Use

The Z620-771-3P meets the requirements of EN54 Part 5 class BS.

Low profile moulding and options of either surface or recessed bases make the units ideal for both modern commercial and industrial interiors featuring solid or suspended ceilings. A high intensity, red LED indicator on the detector moulding provides clear indication when the unit is in alarm.

Twist and lock base

For ease of removal, Z620 series detectors plug into a range of base units. In order to prevent unauthorised removal, a site selectable option is provided to lock the detector into its base. Once applied the unit can only be removed by means of a special tool.

All Z620 detectors feature head out monitoring support. Should a detector be removed from its base, in addition to giving a fault signal, all devices down line of the removed unit continue to function normally when the detectors are used with a Z6-BS5-P diode base.

Key Features

• Complies with EN 54 Parts 5 and 8(BS1 base)
• Low profile conventional design
• Head out continuity - all connected devices remain operational even with heads removed (BS5 base) E
• Range of bases
• Plug in base with automatic locking
