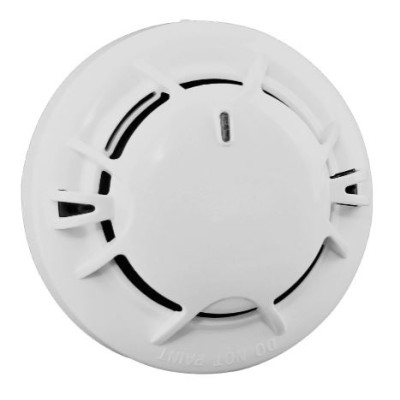

Ziton DC-9101E Conventional Optical/Heat Detector Without Base

Ziton DC-9101E Conventional Optical/Heat Detector Without Base

The DC-9101E combines photoelectric (optical) detection, fixed temperature and rate-of-rise detection technology. The smoke and heat sensors are integrated to provide a solution to a wide range of applications, allowing detecting of more complex fire types. Amongst these include are fire types generating black smoke as well as small particles fires such as those from burning alcohol.

The detector supports installation on the DB-01 conventional detector base for standard applications, or the DB-01D diode base when head-out functionality to BS5839 standard is required. Detection sensitivities are programmable using the P-9910B device programmer.

Key Features

• Strong environmental adaptability due to drift compensation
• Reed switch testing
• Removable innovative sensing chamber, easy for maintenance
• Fire LED allows 360°viewing
• Remote indicator output available
• 2 levels sensitivities programmable; fix temperature or rate of rise programmable
• 2 levels smoke sensitivities programmable, level 1 complies with EN 54-7. Heat part complies with EN 54-5
