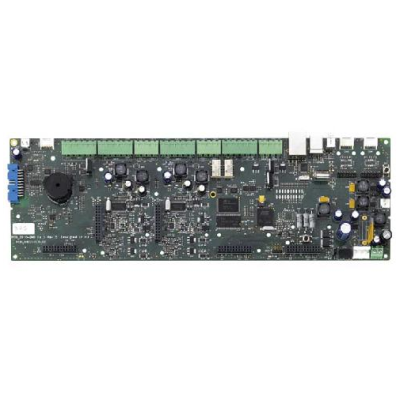

Ziton 2010-2F1-MB ZP2 Main PCB - 1 Loop

Ziton 2010-2F1-MB ZP2 Main PCB - 1 Loop

The 2010-2F1-MB is a replacement main board for all ZP2 1 loop control panels.

Key Features

• 1 Ring with up to 64 zones and the main detector control unit
• Auto - configuration and regional commissioning mode
• Ethernet port with TCP / IP for remote maintenance and programming
• All Terminals pluggable
• 3 USB ports with memory stick support
• 3 RS232 interfaces
• 24 V DC supply alarm switch with reset function
• VdS approval : G 210005

Technical Specifications

• Power supply: Operating voltage: 230/110 V AC (+10% / -15%)
• Operating Current: Nom. 0.6 / 1.3 A, Max. 1.5 / 3.15 A
• Frequency: 50/60 Hz (± 5%)
• Backup: 2/4 A
• Cable Type: 3 x 1.5 mm² (line, neutral, earth)
• Outputs: Fire Alarm + fault monitors: 2,350 mA / 19.5 to 28 V DC
• Programmable monitored: 2,750 mA / 19.5 to 28 V DC
• AUX: 1 switched, 500 mA / 19.5 to 28 V DC
• Fire Alarm + fault relay: 2
• Terminator AG: 15 kOhm
• Inputs: Programmable: 2
• Maximum load: 150mA
• Terminator EC: 15 kOhm
• Cable Characteristics: Outputs: 1,250 mA / 29 V DC to 36 V DC
• Cable length: 56ohm / 1uF max. 4 km
• Environmental conditions: Storage temperature: -20 ° C to +50 ° C
• Operating temperature: -5 ° C to +40 ° C
• Dimensions: Overall dimensions (W x H): 320 x 110 mm
• Admission: VdS Approved: G 211005
