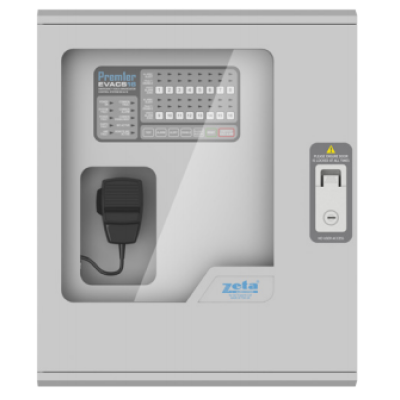

Zeta EVACS1-16 Premier EVACS 1-16 Voice Alarm System

Zeta EVACS1-16 Premier EVACS 1-16 Voice Alarm System

Studies have consistently shown that people respond more readily and with less panic in a fire condition (and other emergency situations) when spoken instructions are used rather than loud electric sounders or bells.

The Premier EVACS 1-16 Voice Evacuation Control Panel has been designed and developed as a stand alone system that will compliment any Zeta Fire Detection System.

The control panel is a modular design, allowing up to 16 channels, units to be networked via RS485.

Each unit has 80 watts output divided to 2 subchannels. Also 2 x 24Vdc is provided to drive alarm when needed.

The Premier EVACS 1-16 Configuration Software lets you easily customise and programme a huge range of the panel’s features including; volume control, trigger matrix, microphone configuration, recording/ downloading bespoke alert and evacuate messages.

Key Features

• System can be networked up to 16 x twin channels totalling 1280w
• Total live broadcasting from any handheld microphone on the network
• Full option to isolate or select any live broadcasting from any of the 16 units on the network
• Complies with EN54 part 16
• Alert message up to 55 second
• Evacuate message up to 1 minute
• CE marked
• Messages are transferred to the system via a PC 40W per channel
• Can play evacuate to selected channel(s) & alert to all others
• All speakers have selectable power output
• Choice of speakers and combined speaker and LED flashers available
