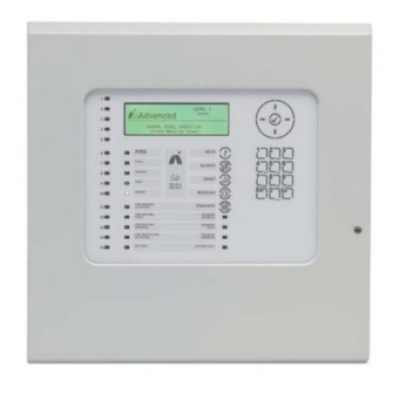

Hyfire HY240 Go 1 Loop Panel (240 Devices)

Hyfire HY240 Go 1 Loop Panel (240 Devices)

The HyFire HY240 allows connection of up to 240 HyFire wireless devices and features a new ergonomic layout of control panel combined with a high resolution, high contrast, graphical LCD display.

The tactile keypad allows simple select-and-click programming for faster engineer configuration and simple end-user operation.

Functional improvements include integral zonal LEDs which enable instant identification of alarm locations, and ensure compliance with BS5839 without the cost of a separate LED zone card. Powerful cause-and-effect programming and enhanced trace diagnostics make the panel suitable for a wide range of site applications, from small to medium systems. All Go series panels are fully programmable on site via the control panel display or with Hyfire's updated, easy-to-use PC Configuration Tool.

Key Features

• HyFire wireless protocol enabled
• Graphical LCD user interface, LED indicators & push buttons
• Installer-friendly Auto-learn, Loop detection and On-board scope facility
• 500 fire + 5000 general event logging, with advanced diagnostic precision to aid installation & fault-finding
• Integral 15 Zone LEDs ensures compliance with BS5839, with 35 additional software indication zones
• Uses a new Configuration Tool with Office365 appearance with better graphics and easier functions for programming
• Two on-board Sounder outputs, three on-board Relay outputs
• Optional 3 monitored input/outputs for Fire/Fault routing (with P-Bus adaptor & routing card) for full EN54 compliance when connected to an Alarm Receiving Centre
• Dedicated USB Type B port for direct PC connection
• Ethernet port for Cloud connection via Advanced Live, to provide remote notification and panel management
• Innovative 'no hinge' removable door and hangable chassis for easier installation
• Employing an identical monitoring feature as the Mx-5000 series, the Go series meets the requirements of EN54-13 (2005) Clauses 5.3.4.1 and 5.3.4.2 (partial open & short circuits) for optimal fire system performance and complete peace of mind
