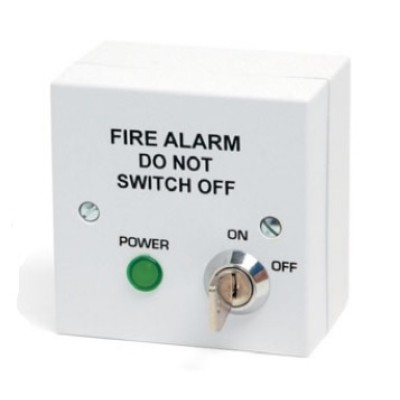

Vimpex VMIS-W Secure Mains Isolator Switch for Control Panels (White)

Vimpex VMIS-W Secure Mains Isolator Switch for Control Panels (White)

This product provides a secure method for safely isolating the mains voltage supply to fire systems in accordance with BS 5839: Part 1 (2002). The unit is supplied in a complete enclosure, which is a standard single gang format with preformed holes for mounting on a surface or 20 mm conduit box. The unit can be accessed by rectangular surface trunking. Please follow the latest IET electrical wiring practices when installing the product.

• Both the Live and Neutral supply is switched
• Integral fuse, which cannot be removed without taking the cover off
• The supply can only be isolated by an authorised person, by means of a keylock switch
• The key is removable in both ON/OFF positions
• A Green LED is used to indicate mains present at the switched output
• When in the OFF position the FUSE is disconnected from the supply

Specification

• Colour: White
• Operating Voltage:230 V ac
• Switch Contact Rating: Double Pole - 230 V ac, 4 A
• Fuse Rating: Max - 6 A Fast (20 mm) supplied
• Switch Surge Rating: 80 A
• Enclosure Material: RoHS Compliant, FR ABS
• Key Number: 901
• Housing Size: Single gang: 86 (h) x 86(w) x 56.5(d) mm
