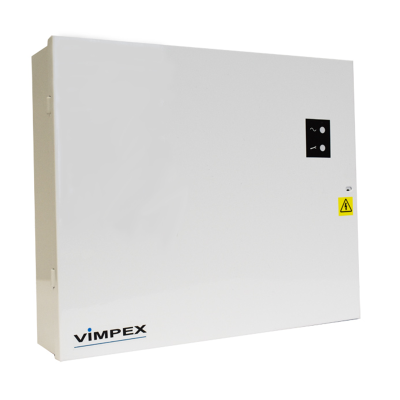

Vimpex VPSU-24-01-SN-A 24V dc 1A (1 x 1A) PSU - No Battery Charging

Vimpex VPSU-24-01-SN-A 24V dc 1A (1 x 1A) PSU - No Battery Charging

The 24 V SN Range of power supplies consists of both low-profile and IP68 variants. The units are available in either 1 Amp, 2 Amp and 4 Amp power ratings with options of up to 8 individually fused output circuits.

Individual fused outputs can provide isolation of selected circuits when servicing or in the event one circuit fails, allowing the rest of the system to operate normally, maintaining system integrity.

All units feature ‘fuse health’ LED’s whic are illuminated to show which powered circuit is functioning correctly. Each fused output circuit may have different value fuses to suit individual loads eg camera, lighting etc...

The 4 Amp Versions are offered in a lockable enclosure (keyed alike) while the 2 Amp versions possess a hinged screw lid. Cable entry is achieved by utilising either cable gland knockouts or via the allocated rear cable entry points of the enclosures.

For external use, there is an IP68 2 A model available that is provided without cable entry points allowing the installer to choose the primary locations to suit the installation.

Key Features

• Individual “fuse health” LED indication
• White powder coated 1.2 mm thick steel enclosure
• Lockable lid (4 A) variants
• Low profile design (50 mm) - internal models
• Fully regulated 24 V dc output
• High efficiency and cost-effective switch mode technology
• Full rated current to load
• Electronic short-circuit protection
• Installer safe, shrouded high voltage electronics
• Replaceable 20 mm mains and output fuses
• Universal 90 - 264 V ac mains supply
• Multiple cable entry/exit options
• Modular construction for easy servicing
• 3-year warranty
