Vimpex IDAP-S-R-230 Hydrosense ID Addressable Leak Detection Repeater Panel 230VAC

Vimpex IDAP-S-R-230 Hydrosense ID Addressable Leak Detection Repeater Panel 230VAC

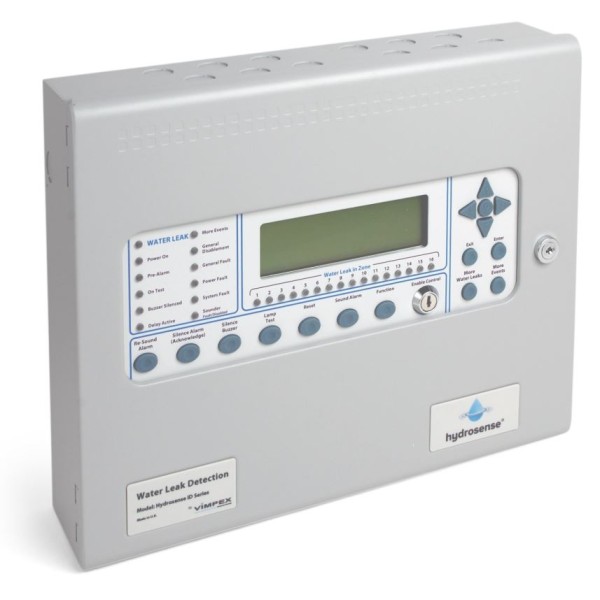

IDAP-S-R-230 from the Vimpex range of products is a Hydrosense ID addressable leak detection repeater panel - 230VAC.

Hydrosense ID offers both linear and point detection solutions. Single and dual loop panels are available with each loop supporting a maximum of 127 addressable devices. Our highly versatile leak detection module will support up to 50m of Hydro-Wire or one Hydro-Probe per circuit, with two circuits available per device. Control panel configuration also allows each leak detection module to be allocated a location-specific name.

Loop supported ancillaries include a mains relay controller which is ideal for solenoid valve activation and plant equipment control, an addressable remote indicator and short circuit isolator. All loop modules can be configured to operate in accordance with powerful cause and effect, delivered via our Loop Explorer 2 software.

Hydrosense ID Control Panels are equipped with both common Alarm and Fault relays, as well as battery backup
