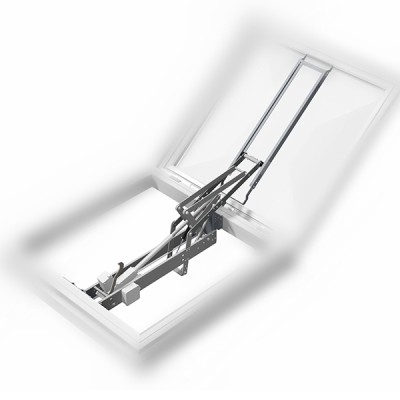

Ventlux 110803 SA Power Single 120cm 140 Deg Full Cradle

Ventlux 110803 SA Power Single 120cm 140 Deg Full Cradle

The opening system sets new standards within the electrical opening and closing of skylight, smoke hatch, glass roof and facade solutions etc. where there is a need for fire and comfort ventilation, according to the European Standard EN 12101-2.

The opening system is based on a unique geometrical movement by means of an electrical actuator, which is fitted in a system for which a patent is applied. This system gives a maximum stability and power exploitation both for opening and closing. The opening system is especially suitable for medium and large skylights.

The opening system has an elegant design, which with its single and compact opening principle demands a minimum of space in closed position as well as in operation (It does not take space in the room under the skylight or smoke hatch). This gives the possibility to pre-install the opening system.

Features:

• For comfort and smoke ventilation in domes, skylights and smoke hatches
• Very easy and flexible mounting
• Opening angle: 0° to 160°
• Εxtremely low noise level
• Opening time: max. 60 seconds
• Designed for min. 10.000 comfort openings and min. 1.000 fire openings
• Degree of protection: IP54 Corrosionclass: C2 (pregalvanized) Operation mode: S3 25% duty cycle
• Meets the demands acc. to EU standard EN12101-2
• Unique and elegant design (takes no space in the room under the upstand)
• Incl. overload protection
• Galvanized
• No maintenance required, only yearly inspection acc. to local legislation
• Patented opening system
