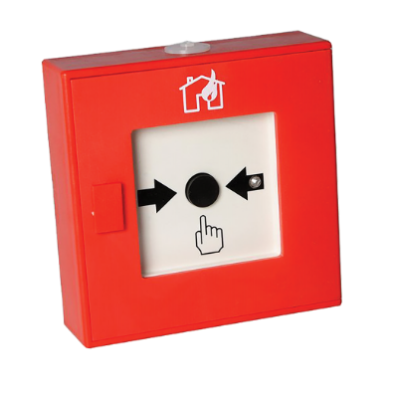

UTC DM2080I-N 2000 Series Addressable MCP w/ Isolator - RED

UTC DM2080I-N 2000 Series Addressable MCP w/ Isolator - RED

The DM2080I-N is an addressable, 2000 series RED manual call point with dual isolator included. Its double action push button has a latching mechanism and is designed according to DIN14655 standards. It is supplied in a in a durable plastic housing with alarm indication LED and has a door opening angle of more than 180° for ease of access.

Installation

The DM2080 is made ready for installation on German junction boxes. The enclosure has an IP rating of DIN IP42 and boasts generous space for the wiring. A t-insulator separates the outside from the inside, and a connector for screened cable in the connection area is available. A yellow LED is available internally to indicate the status for the isolator.

Approval

The DM2080I-N is VdS approved: G 203056

Key Features

• Type B (double action) manual call point
• Includes dual isolator
• RED (alarm) and YELLOW (Isolated) LEDs Complies to DIN14655
• Door opening angle >180°
• Complies to DIN14655
• VdS Approved
