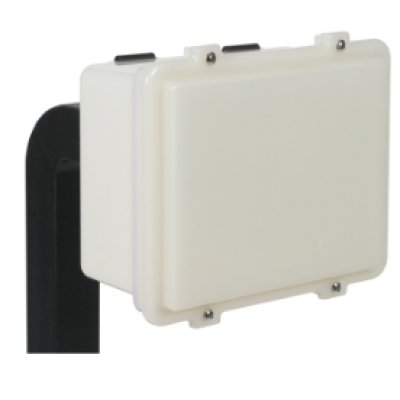

STI STI-7516-A Polycarbonate Enclosure – Access Control Panel - Pedestal Mounted

STI STI-7516-A Polycarbonate Enclosure – Access Control Panel - Pedestal Mounted

These waterproof, multipurpose sealed housings mount to either a wall or pedestal and are ideal for a variety of access control equipment. Molded of thick polycarbonate material which is backed by a three year guarantee against breakage in normal use.

Housings are available in two depths. Back box “A” provides 4.12 inches of depth and back box “F” provides 2.0 inches of depth.

How They Work

The STI-7515 has four mounting tabs allowing it to be installed on a wall. It can be used as a multipurpose electrical enclosure, connection box, etc. The STI-7516 can be installed to a mounting pedestal and is ideal for a gate entry, call switch or any electrical device configuration.

Key Features

• Helps solve installation problems for a variety of access control equipment
• Three year guarantee against breakage of polycarbonate in normal use
• STI-7516 is designed to be installed on a mounting pedestal and includes adapter plate (KIT-318)
• Housings are water resistant to provide added protection for these important devices
• Mounting hardware is included
• Typical working properties of polycarbonate are -40° to 250°F (-40° to 121°C)
• Available in two depths
• Helps solve installation problems for a variety of access control equipment
• 4.25 inch white back box
• Water resistant to provide added protection for important devices
• Pedestal mount
• Mounting hardware included
• 6.46 in H x 8.44 in W x 4.12 in D
