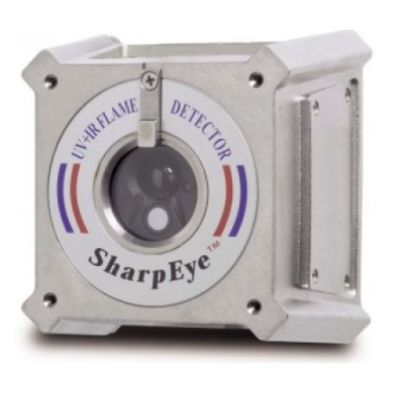

Spectrex 20/20-ML-1-1-S-F 20/20ML Mini UV/IR Flame Detector

Brand: Spectrex

Part Number: 20/20-ML-1-1-S-F
Categories: Detection (Conventional), Legacy Products

Please Contact Us for Price & Availability

Spectrex 20/20-ML-1-1-S-F 20/20ML Mini UV/IR Flame Detector

The SharpEye Mini-UV/IR Flame Detector (20/20ML) is a compact style detector featuring excellent detection sensitivity combined with enhanced immunity to false arms. This model is designed to detect hydrocarbon-based fuel fires, hydroxy and hydrogen fires, as well as metal and inorganic fires. The UV/IR flame detector senses energy in the short wave section of both the ultraviolet and infrared portions of the electromagnetic spectrum. The UV sensor incorporates a special logic circuit that helps prevent false alarms caused by solar radiation. The IR sensor is sensitive to radiation over the range of 2.5 to 3.0 microns. The signals from both sensors are analysed for frequency, intensity and duration. Simultaneous matching of radiant energy in both the UV and IR sensors triggers an alarm signal.

Key Features:

UV/IR Dual-Sensor
High-Speed Response
50 msec Response to Saturated Signal
Large Field of View (100° horizontal/vertical)
User Programmable Functions Configurable via software from a PC or handheld device
Immune to False Alarms (solar blind)
Automatic and Manual Built-In-Test (BIT)
Standard 4-wire Connection
4-20mA source (3-4 wires) configuration
RS-485 Modbus Compatible
MTBF Minimum 100,000 Hours
3-Year Warranty

Applications:

Aerospace Industry - Hydroxy fuels, Hydrogen and Hydrazine fuels
Aircraft Hangars - landing gear pits, under-wing and over-wing protection
Automotive - manufacturing, paint spray booths
Chemical Industry - production, storage, transportation
Paint - manufacturing facilities
Petrochemicals - production, storage, shipping facilities
Pharmaceutical Industry
Polymers and Glue - manufacturing and curing
Power Generation Facilities - pump areas, generator rooms, unmanned stations, gas-fired and coal-fired reactors
Printing Industry - solvent handling, presses, drying processes
Warehouses - storage facilities for flammable materials
