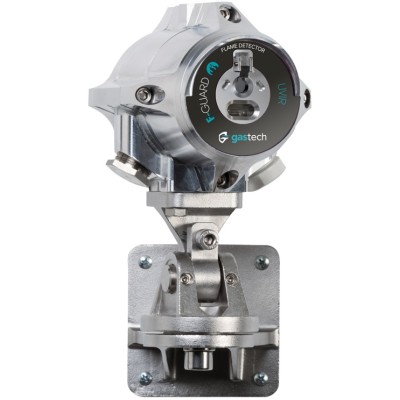

Gastech F-Guard UV-IR Flame Detector

Gastech F-Guard UV-IR Flame Detector

The Gastech F-Guard-UV-IR flame detector provides ultra-fast response, high performance and reliable detection of a large variety of fires including hydrocarbon fires (visible and nonvisible), as well as Hydrogen fires. The detector addresses slow growing fires as well as fast eruptions of fire using improved UVIR technology. The detector operates in all weather and light conditions.

Key Features:

• Hydrogen and Hydrocarbons flame detection.
• Ultra-fast detection mode detection within 5 milliseconds for fireballs or explosions
• High sensitivity - up to 100ft (30m) for a 1ft2 (0.1m2) n-heptane pan fire
• High immunity to false alarm
• Data/Event logger - alarms, faults and other relevant events are logged to non-volatile memory.
• Ethernet communication - in addition to the standard methods, such as 4-20mA and Modbus.
• Built-in-Test (BIT) - Automatic and manual internal self-test of window cleanliness and the overall operation of the detector (for both IR and UV channels).
• Window heater to avoid condensation and icing.
• Tilt mounting bracket can be connected either above or below the detector.
• Configurable detection mode - allows configuration of UV-IR, UV or IR detection

Variants:

• UV-IR: Hydrogen and hydrocarbons flame detection. Spectrum response of IR radiation in the 3.0-4.0 micron range
• UV-IR-F: Hydrocarbon flame detection. Spectrum response of IR radiation in the 4.0-5.0 micron range
