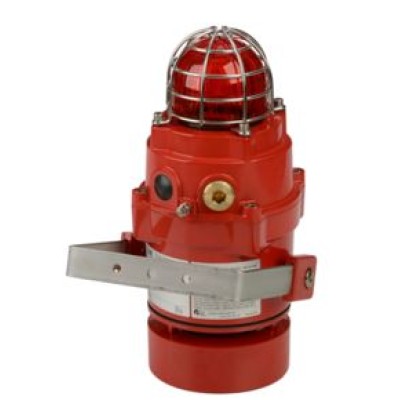

Vimpex Explosion Proof Alarm Radial Sounder and Xenon Beacon (110 dbA / 24 Vdc) in Red

Vimpex Explosion Proof Alarm Radial Sounder and Xenon Beacon (110 dbA / 24 Vdc) in Red BEXCS11005DPRDC024

The flameproof BExCS110-05 combination alarm horn sounders and Xenon strobe beacons are suitable for Zone 1, 2, 21 & 22. Approved to IECEx, ATEX, Ex EAC and INMETRO standards.

Sound level outputs are up to 117dB(A) at 1 metre with a choice of 32 alarm tones and 3 remotely selectable stages. Alarm horn & Xenon beacon may be connected from a single power supply for simultaneous operation or from separate supplies for independent operation. The BEx explosion proof Ex d range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium with a chromate and powder coat finish. All models have dual cable entries, large termination areas containing in & out terminals and an ingress protection of IP66/67.

Key Features

• Marine grade, corrosion proof, LM6 aluminium enclosure
• Automatic synchronisation on multi-beacon & sounder systems
• Beacons can be set to ‘flip-flop’ alternating mode with other units on multi-beacon systems
• Xenon tubes mechanically secured against shock & vibration
• Very large termination area
• Dual M20 cable entries – adaptors available
• Stopping plug included
• Ratchet adjustable stainless steel ‘U’ bracket
• Reverse polarity diode fitted
• IP66/67 ingress protection
• 120 candela effective light intensity
• UV stable PC, field replaceable, colour lens filters
• ‘Stage Programmable’ version available with 45 tones & 4 remotely selectable stages
