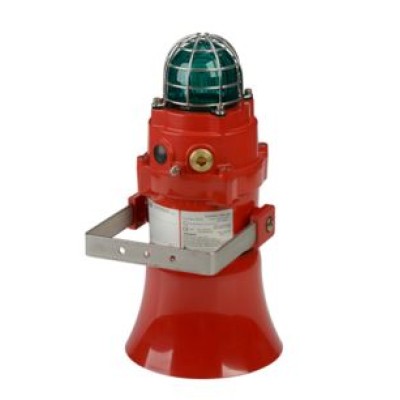

Vimpex Explosion Proof Alarm Horn Sounder and LED Beacon (110 dbA / 24 Vdc) in Red

Vimpex Explosion Proof Alarm Horn Sounder and LED Beacon (110 dbA / 24 Vdc) in Red - 24 V dc BEXCS110L2DPFDC024

The flameproof BExCS110-L2 combination alarm horn sounder and LED beacon is suitable for Zone 1, 2, 21 & 22. Approved to IECEx and ATEX standards.

The BExCS110-L2 features sound level outputs of up to 117dB(A) at 1 metre with a choice of 32 alarm tones and 3 remotely selectable stages. The LED beacon contains an array of 4 high output, multi-function L.E.D.s. with a total of 7 modes of operation – 5 flashing modes and 2 steady modes for use in indicator / status applications. DC voltage versions feature three remotely selectable stages enabling multiple warnings to be signalled from one device. The unit features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium with a chromated and powder coat finish.

BEXS120DFDC024 from the Vimpex range of products is an Explosion Proof Alarm Horn Sounder has over 40 alarm tones and any tone can be assigned at any stage.

Key Features

• Marine grade, corrosion proof, LM6 aluminium enclosure
• Ingress protection IP66/67
• Automatic synchronisation on multi-beacon systems
• Choice of five flash rates: 1Hz, 1.5Hz, 2Hz, double and triple flash
• High and low power Steady modes
• Three remotely selectable stages/channels on DC versions
• Glass lens & Stainless-Steel guard
• UV stable PC field replaceable lens colour filter
• Dual M20 cable entries – adaptors available
• Stopping plug included
• Duplicate cable terminations (in & out for daisy-chain installations)
• Ratchet adjustable stainless steel ‘U’ bracket
• Reverse polarity diode fitted
• IP66/67 ingress protection
• 160 candela effective light intensity
• ‘Stage Programmable’ version available with 45 tones & 4 remotely selectable stages
