E2S STA2 Alarm Horn w. Xenon &/or L.E.D x 2

E2S STA2 Alarm Horn w. Xenon &/or L.E.D x 2

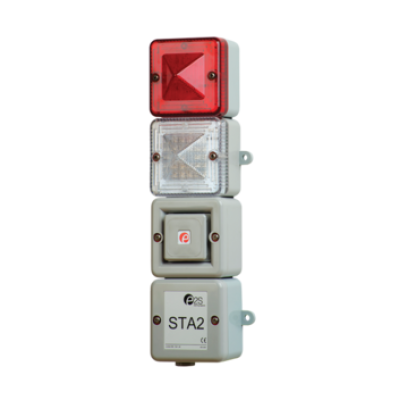

The STA2 is a customisable audio-visual signal featuring a tower of 2 AlertAlight L101 type beacons combined with a SONF1 alarm sounder.

Each beacon position can contain either a Xenon or high output L.E.D. light source. The STA2 assembly features a pre-wired junction box and cable loom enabling the end user to determine beacon type and position during installation.

Key Features

• SONF1 alarm sounder synchronises automatically on multi-unit systems.
• Multiple configurations of Xenon and L.E.D. beacons.
• Internal cable loom and termination PCB simplifies installation.
• Common negative/neutral supply minimises cabling.
• High output L.E.D. unit can be set to steady or flashing.
• Available with red, white or grey housing.
• Sealed to IP66.
• Tropicalisation available on request.
• Also available without SONF1 audible signal – see the STB2/3/4 data.
• 86.4mm x 350.5mm x 83.7mm
• 3.4” x 13.81” x 3.3”

Approvals

• UL & cULs approved: General signalling use.
• EAC compliant: RU D-GB.AL16.B.11083
