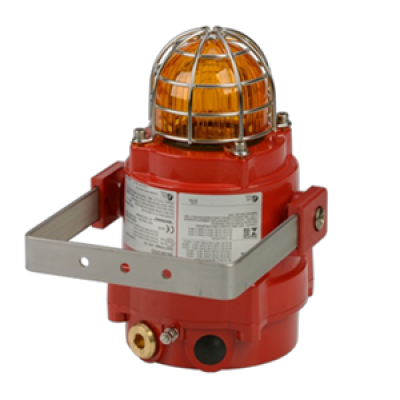

E2S BExBG10 Xenon Beacon 10 Joule

E2S BExBG10 Xenon Beacon 10 Joule

The flameproof BExBG10 10 Joule, 380 candela Xenon beacons are suitable for Zone 1, 2, 21 & 22 applications. Approved to IECEx, ATEX, Ex EAC and INMETRO standards. Available as SIL 1 and SIL 2 compliant.

The BExBG10 10 Joule Xenon strobe beacons robust construction enables installation in the harshest of environments. Additional features include automatic synchronisation on multi-beacon systems and stainless-steel guard and mounting bracket as standard.

The explosion proof Ex d BEx range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium with a chromate and powder coat finish. All models have two M20 cable entries, large termination areas containing in & out terminals and an ingress protection of IP66/67.

Key Features:

• Marine grade, corrosion proof, LM6 aluminium enclosure
• Automatic synchronisation on multi-beacon system
• Beacons can be set to ‘flip-flop’ alternating mode with other units on multi-beacon systems
• Xenon tubes mechanically secured against shock & vibration
• Glass lens & Stainless-Steel guard
• Very large termination area
• Dual M20 cable entries – adaptors available
• Stopping plug included
• Ratchet adjustable stainless steel ‘U’ bracket
• Reverse polarity diode fitted
• IP66/67 ingress protection
• 380 candela effective light intensity
• UV stable PC, field replaceable, colour lens filter

Approvals:

• IECEx Certificate: KEM 10.0002X
• ATEX Certificate: KEMA 00ATEX2006X
• TR-CU Ex EAC certificate: RU C-GB.HA65.B.01252_21
• SIL 1 and SIL 2 compliant to IEC 61508 (2010)
• INMETRO certificate: 10-IEx-0010
• UKCA certificate: UL22UKEX2636X
