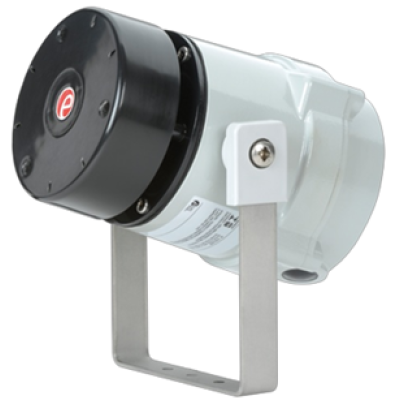

E2S BExH120 ‘Hootronic’ Alarm Horn

E2S BExH120 ‘Hootronic’ Alarm Horn

The flameproof BExH120 Belltronic Signalling Bell is suitable for Zone 1, 2, 21 & 22 applications. Approved to IECEx, ATEX, Ex EAC and INMETRO standards. The BExH120 authentically reproduces the traditional sound of a electro mechanical bell whilst providing a significantly higher level of performance and reliability.

The digitally stored bell recording is output via a class D amplifier achieving sound levels exceeding the performance of a mechanical bell whilst offering a continuously rated signal. The radial horn design not only physically emulates the traditional bell it also replicates the distribution of the audible signal.

Key Features:

• Marine grade, corrosion proof, LM6 aluminium enclosure
• Ingress protection IP66/67
• Stainless steel fixings
• Dual M20 cable entries – adaptors available
• Stopping plug included
• Reverse polarity diode fitted
• Digitally stored mechanical bell sound
• Continuously rated
• Maintenance free
• Very large termination area
• Ratchet adjustable stainless steel ‘U’ bracket

Approvals:

• IECEx Certificate: KEM 10.0003X
• ATEX Certificate: KEMA 99ATEX6312X
• TR-CU Ex EAC certificate: RU C-GB.HA65.B.01252_21
• INMETRO certificate: 10-IEx-0009
• UKCA certificate: UL22UKEX2638X
• CCOE PESO
