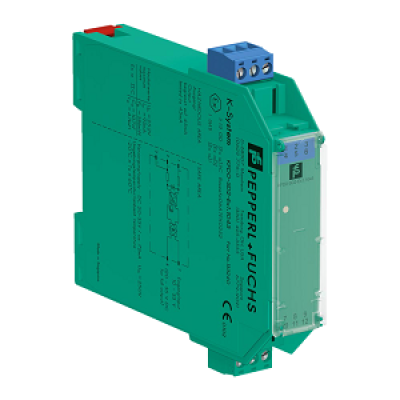

Vimpex PF-KFD0-SD2-Ex1.1045 Single Channel Galvanic Isolator

Vimpex PF-KFD0-SD2-Ex1.1045 Single Channel Galvanic Isolator

This isolated barrier is used for Vimpex intrinsic safety applications. The device supplies power to solenoids, LEDs and audible alarms located in a hazardous area.

The PF-KFD0-SD2-Ex1.1045 is loop powered, so the available energy at the output is received from the input signal. The output signal has a resistive characteristic. As a result, the output voltage and current are dependent on the load and the input voltage.

At full load, 10 V at 45 mA is available for the hazardous area application.

Key Features

• 1-channel isolated barrier
• 24 V DC supply (loop powered)
• Current limit 45 mA at 10 V DC
• Up to SIL 3 acc. to IEC 61508
• Signal type: Digital Output
• Functional safety related parameters: Safety Integrity Level (SIL) SIL 3
• Connection: terminals 7, 8
