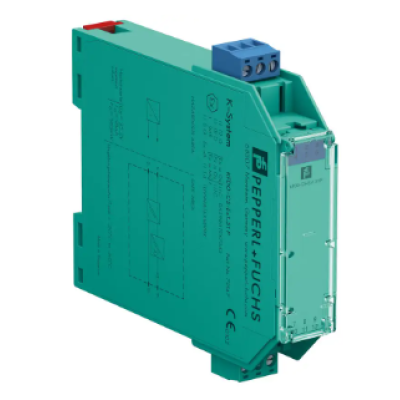

Signaline PF-KFD0-CS-EX1.51P Galvanic Isolator for Signaline and other Detectors (Single Channel)

Signaline PF-KFD0-CS-EX1.51P Galvanic Isolator for Signaline and other Detectors (Single Channel)

This isolated barrier is used for intrinsic safety applications. It transfers DC signals from fire alarms, smoke alarms, and temperature sensors in hazardous areas. It can also be used to control I/P converters, power solenoids, LEDs, and audible alarms. Reverse polarity protection prevents damage to the isolator caused by faulty wiring. Since this isolator is loop powered, use the technical data to verify that proper voltage is available to the field devices.

Key Features

• 1-channel isolated barrier
• 24 V DC supply (loop powered)
• Current input/output 0 mA ... 40 mA
• I/P or transmitter power supply
• Accuracy 1 %
• Reverse polarity protection
• Up to SIL2 acc. to IEC 61508
