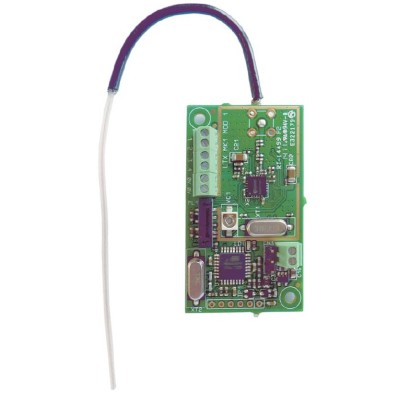

Scope LTX9V 9v LTX OEM 4 Zone Transmitter Module with Wire Antenna

Please note: This product is no longer available, please contact us for further information.

Scope LTX9V 9v LTX OEM 4 Zone Transmitter Module with Wire Antenna

The LTX transmitter is a low power SRD transmitter intended to be used in applications that require radio alerts on demand from a user or automated by the configuration software. Frequency can be programmed from 433MHz - 460MHz and power output can be varied from 0dBm - 10dBm. Standard Scope radio protocol is transmitted direct to Rx devices. The LTX unit can be configured with the optional programming kit comprising of a dedicated interface cable (USB to board header) and PC software. Each of the four inputs can have its own configured message along with a Reset message, low battery message and a battery shutdown message.

Key Features:

• Frequency Programmable 433MHz - 460MHz
• Variable power output (0dBm - 10dBm)
• Can be powered by external DC source of between 4 & 12 V or 3 V internal source
• Test call function
• 10mW (max) output power
• Available with either a SMA aerial connector or fitted wire aerial
