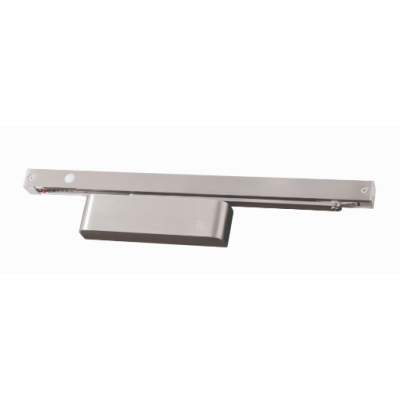

Rutland TS.FIRETRAK. 115.SNP Size 2-5 Electromagnetic Hold Open Slide Rail Closer

Rutland TS.FIRETRAK.115.SNP Size 2-5 Electromagnetic Hold Open Slide Rail Closer

The TS.FIRETRAK.115 Electromagnetic Slide Arm Closer is a surface mounted Electromagnetic hold-open slide arm with cam action door closer designed for fire and smoke compartmentation doors.  Fire and smoke doors will operate in a controlled close with the TS.FIRETRAK.115 when the fire alarm is activated.

Key Features

• Variable power size EN2-5, does doors up to 110kg & 1250mm wide
• Is a cam action mechanism, so assists BS8300 for DocM contracts
• Tested to EN 1155 (electrical compatibility), EN 1154 (controlled door closing devices) & EN1634 (dual orientation fire tests)
• Universal application – can be fitted in Standard, Parallel arm or Transom fitting position.  Push, Pull, Left or Right.
• Third-party fire certificated
• UL and ANSI grade 1 classification
• 5 year guarantee

Designed for use with:

• PSU.1224.9 – Power Supply Unit
• Voltage Output : 24v DC
• It is recommended that for each E-Mag Door Closer (Responder 24 and FireTrak 114 & FireTrak 115) that a 1A Power Supply Unit is specified, however if fitting to double doors then a 2A Power Supply Unit can be used to operate the two E-Mag Closers.
