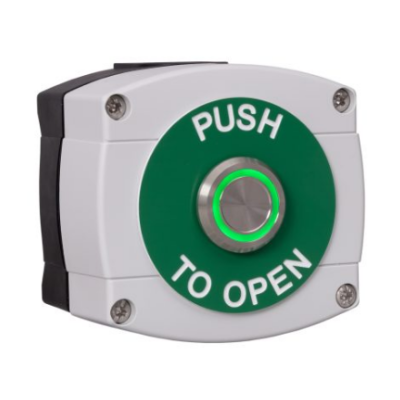

RGL Electronics WP66-G-ILG/PTO Externally Rated Button IP66 - Push To Open

RGL Electronics WP66-G-ILG/PTO Externally Rated Button IP66 - Push To Open

Weatherproof IP66 rated plastic housing in Grey/Black with 25mm Green illuminated piezo switch. Surface mounted. PUSH TO OPEN text. 2 x 20mm cable entry holes.

Size 85h x 90w x 60d to 80 (all mm - d=back box only).

Key Features

• Contacts: NO/COM
• Contact rating: 500mA @24V AC/DC
• Voltage: 12-24VDC
• Wear resistant legend (others available on request)
• Button is rated at IP68
• IP66 ingress protection (enclosure)
• Robust two part cross polymer housing
• M16/20 pre moulded conduit knockouts
• Silver contacts
• Operating temperature -20° to +60°c
• Operating travel: 2mm
• Contact resistance: <50mΩ
• Operating life (mechanical): 1,000,000
• LED status: Red / Green / Blue or Yellow (Static)
• Momentary operation / contact
• High impact plastic back box
• Surface fitting
• Easy clean surface.
• IP66 weatherproof unit
