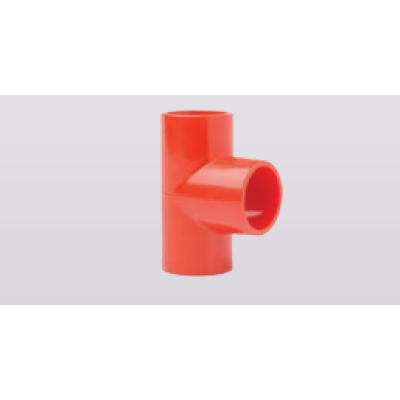

Protec N-37-554-72 ABS Tee Piece 25mm (RED)

Protec N-37-554-72 ABS Tee Piece 25mm (RED)

The 25mm Red ABS Tee Pieces allows for the smoke detection pipe to be split in different directions and should always be connected with ABS solvent cement. This device should be used when a "Bull nose" or "Side tee" flow split is required.

Protec offer an extensive range of sampling pipe and accessories to allow a complete professional and well-engineered aspirating detection system installation. 25mm ABS sampling pipe is offered in red, white and grey colours, together with many complimentary accessories.

Accessories range from standard pipe components such as couplings, bends and tee’s to more application specific components such as filters, colour coded hole identification tags and condensation traps.

Sampling pipe should be suitable for the environment in which it is to be installed. Care should be taken in the selection of sampling pipe with regards to the sampling pipe bore diameters. For further information on the selection of suitable sampling pipes for different applications please see the relevant Protec Design Guide in the aspirating section of Sale Literature page.

General Information

• ABS (Acrylonitrile Butadiene Styrene) is a homogenous material with good chemical resistance and high impact strength. Other advantageous features are its suitability for use at low temperatures (-40°C) and its ease of jointing.

Standards

• Protec supplied Aspirating Pipe and Fittings are produced under a strict quality control system approved to EN ISO 9001. Protec supplied Aspirating Products have been Tested by LPCB to EN 54-20 Clause 5.7, EN 61386-1 Class 1131. LPCB Test Report No- TE250773
• Individual products are in accordance with the appropriate British Standards.
• Fittings (inch) BS 5391 Part 1, EN 1452 Part 3, EN 54-20 Clause 5.7, EN 61386-1 Class 1131
• Fittings (Metric) Din 8063, Kiwa 549, ISO 727
• Pipe BS 5391 EN 61386-1 Class 1131
• Adhesive BS 4346 Part 3

Temperature

• ABS is suitable for use over a wide temperature range from -40°C to +70°C.

Key Features

• Material: ABS
• Colour: Red
• Operating temperature range: -40°C to 70°C
• EN54 tested
