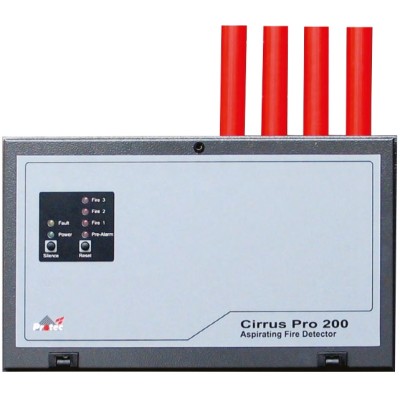

Protec Cirrus Pro 200 Aspiration Detector EN54-20 Approved

Protec Cirrus Pro 200 Aspiration Detector EN54-20 Approved

Cirrus Pro Series Aspirating Fire Detectors provide a solution for almost any aspirating system project, from a simple single pipe detector with minimum ‘Fire’ and ‘Fault’ LED indications to a multiple pipe scanning detector with multifunction quarter VGA backlit LCD display. Programming for each detector is via a laptop computer or from an onboard or remotely mounted LCD display.

The ‘sensitivity range’ is the key feature that makes the Cirrus Pro Series Fire Detector the world’s most versatile fire detection device. For over 20 years Cloud Chamber detectors have been known as the most sensitive fire detection device, able to detect at the true incipient stage of a developing fire. The New Cirrus Pro Series Detectors have a vast sensitivity range capable of being even more sensitive than previous versions. In addition, the detector may now be configured to be installed in heavily contaminated environments, such as polluted production and warehousing facilities.

High Sensitivity Applications include:

Computer Rooms, Clean Rooms, Control Rooms, Data Centres, Valve Halls, Archive Storage, Anechoic Chambers, EDP areas.

General Sensitivity Applications include:

Historic Buildings, Museums, Hospitals, Cathedrals, Theatres, Art Galleries, Clean Warehouses, Atria, Indoor Stadiums.

Harsh Environment Applications include:

Cold Storage Facilities, Specialist Production Facilities, Food Industry Facilities, Paper Production Facilities, Transportation Terminals, Flight Simulators, Aircraft Hangers, Prisons, Inaccessible Voids, Dirty Warehouses.

Key Features

• Cloud Chamber Detection Principle
• Up to 200 mtrs Sampling Pipe
• Programmable ‘Pre-Alarm’ warning condition
• 3 Programmable ‘Fire’ warning conditions
• Airflow Monitoring
• ‘Fault Diagnostic’ feature
• Immune to dust, humidity & temperature changes
• EN54-20 Approved
• For use with up to a total of 200mtrs of 25mm diameter sampling pipe
• Four sampling pipe ‘inlet’ ports, single sampling pipe ‘exhaust’ port
• LED status indication of Common Fault, Power, Pre-alarm, Fire 1, Fire 2, Fire 3 alarm conditions
• Internal buzzer ‘Silence’ button, detector alarm ‘Reset’ Button
• May be networked with other Cirrus Pro Series aspirating detectors
