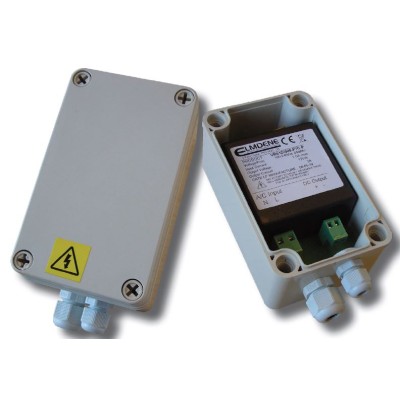

Elmdene VRS122000-PTC-P 12Vdc CCTV PSU (Outdoor Applications)

Elmdene VRS122000-PTC-P 12Vdc CCTV PSU (Outdoor Applications)

A switch mode power supply unit providing 12V dc (2A max) in a compact IP66 rated enclosure, ideal for CCTV applications. Featuring a regulated 12V dc SMPSU module, it can continuously supply full rated current to load, while its universal mains input voltage enables the power supply to be used across a wide geographical area. The highly efficient switch mode design generates less heat and ensures low operating costs.

The output of the PSU is provided with a resettable (PTC) fuse, providing protection to the powered circuit in the event of a short circuit occurring. A resettable fuse allows the user to resolve a fault on an output circuit without the need of replacing a blown internal fuse within the enclosure. Once the fault has been rectified the fuse automatically resets and the power is resumed.

Key Features

• 12V dc, 2A (1x 2A output)
• IP66 enclosure
• 2 x cable glands provided
• Switch Mode design
