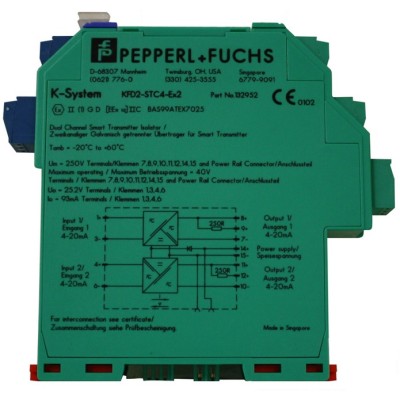

Pepperl Fuchs KFD2-STC4-Ex2 Smart Transmitter Power Supply

Brand: Pepperl + Fuchs

Part Number: KFD2-STC4-Ex2
Categories: Ancillary (Addressable)

Please Contact Us for Price & Availability

Pepperl Fuchs KFD2-STC4-Ex2 Smart Transmitter Power Supply

SMART transmitter power supplies provide 2-wire SMART transmitters and transfer the analogue values. Digital signals may be superimposed on the analogue values, which will transfer bidirectional. Handheld terminals should be connected as shown in the block diagram.

An internal resistor at the output terminals 9 and 12 is available, which may be used to increase the AC impedance for the HART signal. SMART transmitter power supplies are delivered with terminal type KF-STP-**. Jacks are integrated in these terminals for the connection of the handheld units.

This product replaces the MTL 5544

Isolated Barrier - Instructions (956.49KB)
Isolated Barrier - Data Sheet (1.22MB)
MTL5544 - Data Sheet (596.25KB)
