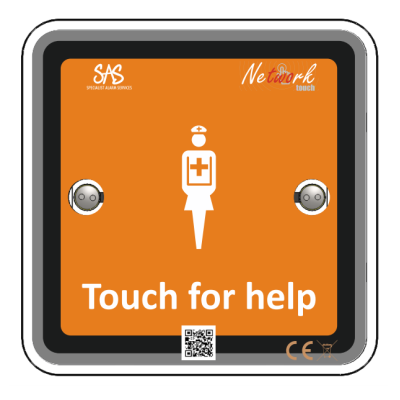

SAS Caring Technology Touch-RU-SL Slave Patient Call Point

SAS Caring Technology Touch-RU-SL Slave Patient Call Point

Designed for challenging environments. The room unit, manufactured from injection molded Tritan Tx (more resilient than Polycarbonate) is low profile and vandal resistant. The unit is touch actuated. The patient can touch any of the area denoted by the orange square to activate a patient call. The hidden LED in the centre of the call point illuminates red when the call is active.

The room unit is wired directly to an addressable device e.g. SRU at install time. Included 2x torx M3.5 x 25mm security screws.

Key Features

• Fascia 95mm x 95mm x 5.4mm
• Back box Single gang depth >= 25mm, recommended
• LED Red
• Weight (with back box) 76g (250g)
• Supply current 1mA inactive, 8mA active
• Temperature 0-50°C
• Temperature 0-50°C
