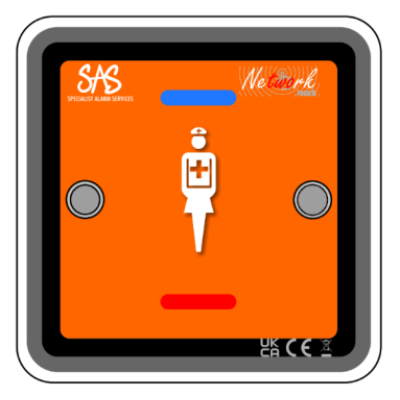

SAS Caring Technology Touch-RU-SB-MAG Touch Room Unit, Single Call Button With Magnetic Alarm & Reset

SAS Caring Technology Touch-RU-SB-MAG Touch Room Unit, Single Call Button With Magnetic Alarm & Reset

Designed for challenging environments. The call button call point unit, manufactured from injection molded Tritan Tx (more  resilient than Polycarbonate) is low profile and vandal resistant. The unit is touch actuated. The patient can touch any of the area  denoted by the orange square to activate a patient call. The hidden LED in the centre of the call point illuminates red when the  call is active. The call point is addressable, and its 20-character name is programmed by infrared only. There are auxiliary connectors on the rear of the device for connecting to ensuite bathroom devices at install time. Included 2x torx M3.5 x 25mm security screws.

Key Features

• Fascia 95mm x 95mm x 5.4mm
• Back box Single gang depth >= 25mm, recommended
• LED Red
• Weight (with back box) 76g (250g)
• Supply current 3mA inactive, 12mA active
• Temperature 0-50°C
