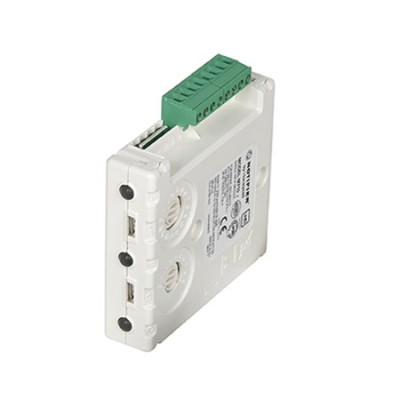

Notifier M710 Single Input Module

Please note: This product is now obsolete, the replacement is the Notifier M710E Analogue Addressable Single Input Monitor Module.

Notifier M710 Single Input Module

The M700 series modules are designed for use with any NOTIFIER protocol fire alarm control panel and include selectable loop isolation in every device. The M710 module monitors a single input device circuit of normally open dry contact alarm activation devices.

These modules use one of 99 available module addresses on a loop and respond to regular polls from the control panel reporting its type and the status (open/normal/short) of its supervised device circuit.

Key Features:

• Analogue addressable communications
• Built-in type identification automatically identifies these devices to the control panel (not M700X)
• Stable communication technique with high noise immunity
• Rotary DECADE 01 to 99 address switches (not M700X)
• Common mounting options including Surface Mount, Panel Mount and DIN Rail Mount.
• Tri-colour LED’s
• Powered directly by 2-wire loop. No additional power required
• Plug-in terminal connections for ease of field wiring
• Approved to CEA GEI 1-082 AND CEA GEI 1-084
• CPD approval to EN54-17 and EN54-18, LPCB and VdS
