Notifier IDP-LPB1 Loop Booster Boxed 002-629

Please note: This product is now obsolete, with no replacement. Please contact us for further information.

Notifier IDP-LPB1 Loop Booster Boxed 002-629

The Loop Booster provides additional power to an analogue addressable loop in order that a greater number of loop powered warning devices may be connected. As an addressable device a number of loop boosters can be added to a loop within the normal addressable range (01 to 99). Typically, no more than 2 loop boosters are required be added to any particular loop.

The Loop Booster has been designed to be connected to mains power (230VAC) with two 12V, 12 Ah sealed lead-acid batteries providing up to 72 hours standby. If the loop booster battery charging voltage falls below 21V, the batteries are disconnected automatically to prevent damage.

Installation:

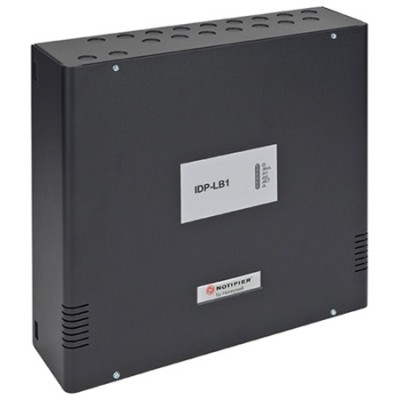

The IDP-LB1 is housed in a mild steel enclosure with a centre top and two bottom corner fixings allowing the unit to be mounted level. ‘Knock-outs’ are provided on the top to allow for cable entry. Space is provided for two 12V, 12Ah batteries and the unit is finished with a detachable door.

Key Features:

• Expands the capacity of ‘alarm’ devices on a loop
• Addressed as a module, in the range 01 to 99
• Self-contained standby batteries
• Two section enclosure allowing first fixing separate from electronics and front cover
