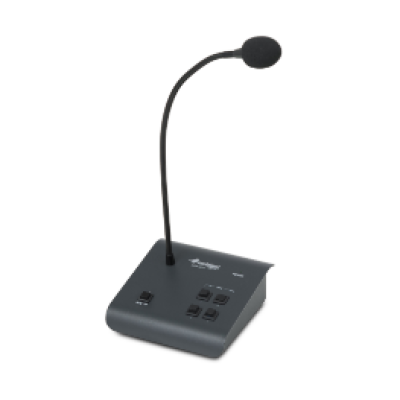

Notifier Honeywell ABT-M04 Microphone

Notifier Honeywell ABT-M04 Microphone

The ABT-M04 is a 4-button analogue microphone with built in gong, push to talk and bi-colour LED indicating the ready-to-speak status.

To operate the device first select the Zones by pressing designated buttons and then press MIC ON button, the status LED will switch from red (not ready for broadcast) to steady green light. In the event of an active built in gong, the status LED will turn green once the gong has ended. When finished transmitting the message release the MIC ON button to deactivate the goose-neck mic.

Details

• Operating voltage 20–57 VDC
• Eciency 10 mV/ a
• Output level 775 mV
• Maximum distance from ampli?er 250 m
• Recommended cable type UTP
• Connector Type 8P8C (RJ45)
• Dimensions without
• packaging (not more than) 150 × 60 × 165 mm
• Net weight (not more than) 1,2 kg
