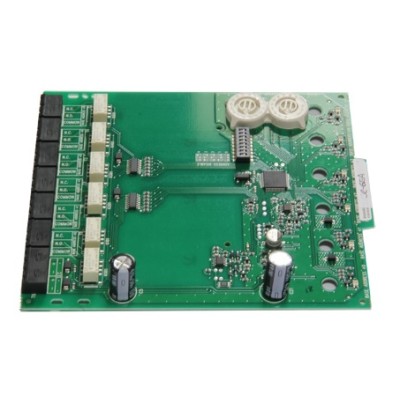

Notifier NFIX-RM6 Six-way Changeover Relay Output with Loop Isolation

Notifier NFIX-RM6 Six-way Changeover Relay Output with Loop Isolation

The six channel output module is designed for use in applications where numerous single modules are required. The monitor and control module can be used to supervise and activate sounders, strobes, door closers, break glass call points, waterflow switches and other ancillary devices.

The NFXI-RM6 consists of six changeover relays. A single isolated set of dry relay contacts, which can be wired as normally open or normally closed, is provided for each address. The module enables the control panel to switch contacts on demand. The controlled circuit is not supervised. In Opal Digital Protocol only one address is used for the entire multimodule with sub-addresses completing the remaining addresses.
