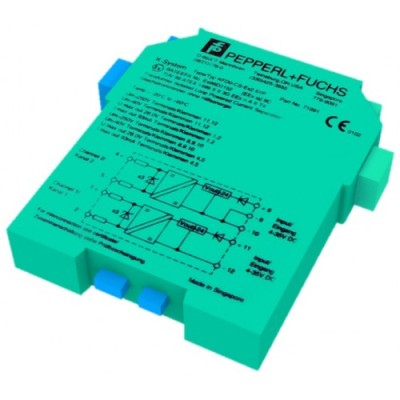

Nittan KFD0-SD2-Ex1.1045 1 Channel Galvanic Barrier for use with I.S. Strobe or Sounders

Please note: This product is no longer available, the closest alternative is the Pepperl & Fuchs KCD0-SD3-EX1.1045 Solenoid Driver.

Nittan KFD0-SD2-Ex1.1045 1 Channel Galvanic Barrier for use with I.S. Strobe or Sounders

This isolated barrier is used for intrinsic safety applications. It supplies power to solenoids, LEDs, and audible alarms located in a hazardous area. It is loop powered, so the available energy at the output is received from the input signal. The output signal has a resistive characteristic.

As a result the output voltage and current are dependent on the load and the input voltage. At full load, 10 V at 45 mA is available for the hazardous area application.
