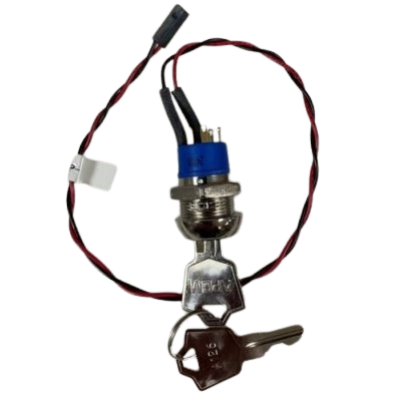

MX-5000 - 2-Pos Key Switch - untrapped (MXP-517)

The MxPro 5 control panel range supports direct installation of up to 8 individual key switches.

Applications

The MxPro 5 1 loop permits 1 key-switch to be fitted, but the MxPro 5 2 & 4 loop control panels allow a maximum of 8.

Key Features

  • Enable/disable controls
  • Group isolate to disable I/O across network
  • For use to start/enable a class change
  • Trapped and un-trapped key switches available
  • Control of multi-sensor/device sensitivity mode change
  • Simple to install and configure
  • Trapped and Un-trapped key switches

Compatibility

Can be used with all MxPro 5 series control panels.

Limitations

If an on-board printer is fitted to the MxPro 5 2 & 4 loop control panels then the maximum number of switches fitted is limited to 4. If the MxPro 5 3 position switch is fitted, then two programmable inputs must be available per switch.
