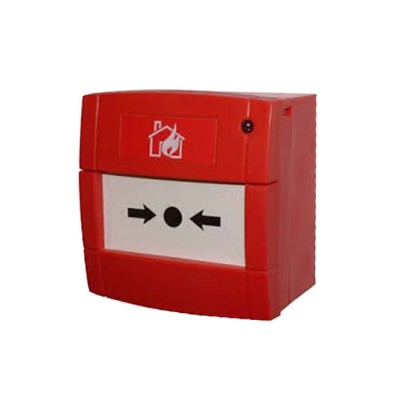

Morley M5A-RP05FF-K013-01 Addressable Manual Call Point - Flexible Element

Morley M5A-RP05FF-K013-01 Addressable Manual Call Point - Flexible Element

The Morley M5A-RP05FF-K013-01 Call Point comes complete with a flexible plastic element.

This call point is specifically designed for use on Morley IAS analogue addressable fire alarm system loop circuits.

Installation efficiency, flexibility and compliance with the latest standards are at the heart of the call point range.

The unique ‘plug and play’ concept is designed specifically to reduce installation time by using a terminal block which can be wired during the initial installation cabling with a link (P102) to provide continuity for testing. During the commissioning phase, the links are removed and the terminal block is simply inserted into the connector at the back of the unit. No re-termination is required.

Key Features

• Resettable addressable alarm button.
• Supports the use of standard flush-mounted boxes.
• Includes status LED and reset key.
• Easy addressing using two decade rotary switches.
• It has a tricolor LED that allows you to see its status from any point.
• Requires PS031W box for surface mounting.
• Consumption: 200µA at rest and 7mA in alarm.
• Dimensions: 89 x 93 x 27.5 mm.
• Weight: 110g.
